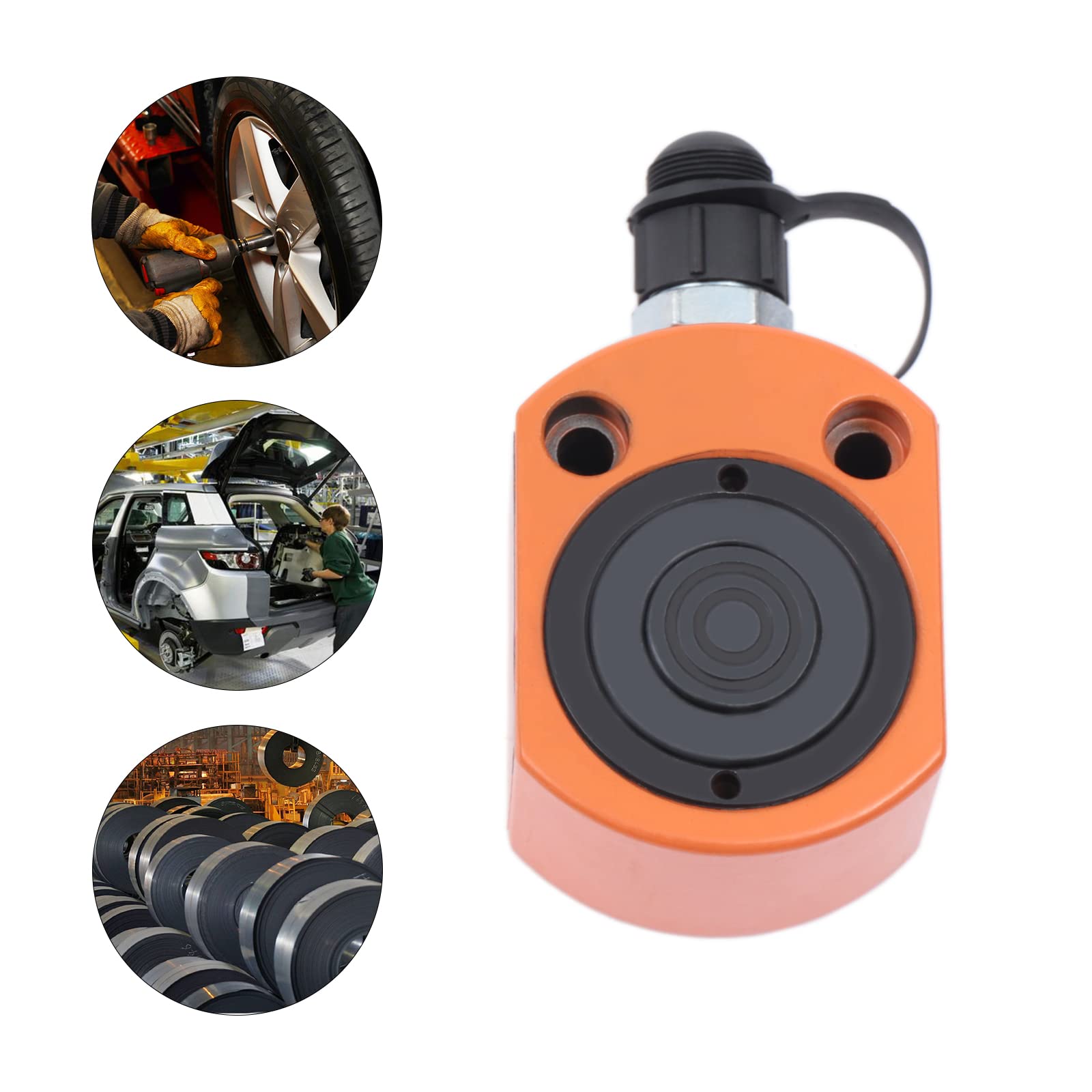

20 Ton Hydraulic Cylinder Jack - Low Profile Heavy Duty Lifting Ram with 2 Retractable Strokes for Industrial Equipment, Automotive Repair, and Construction Lifting Applications

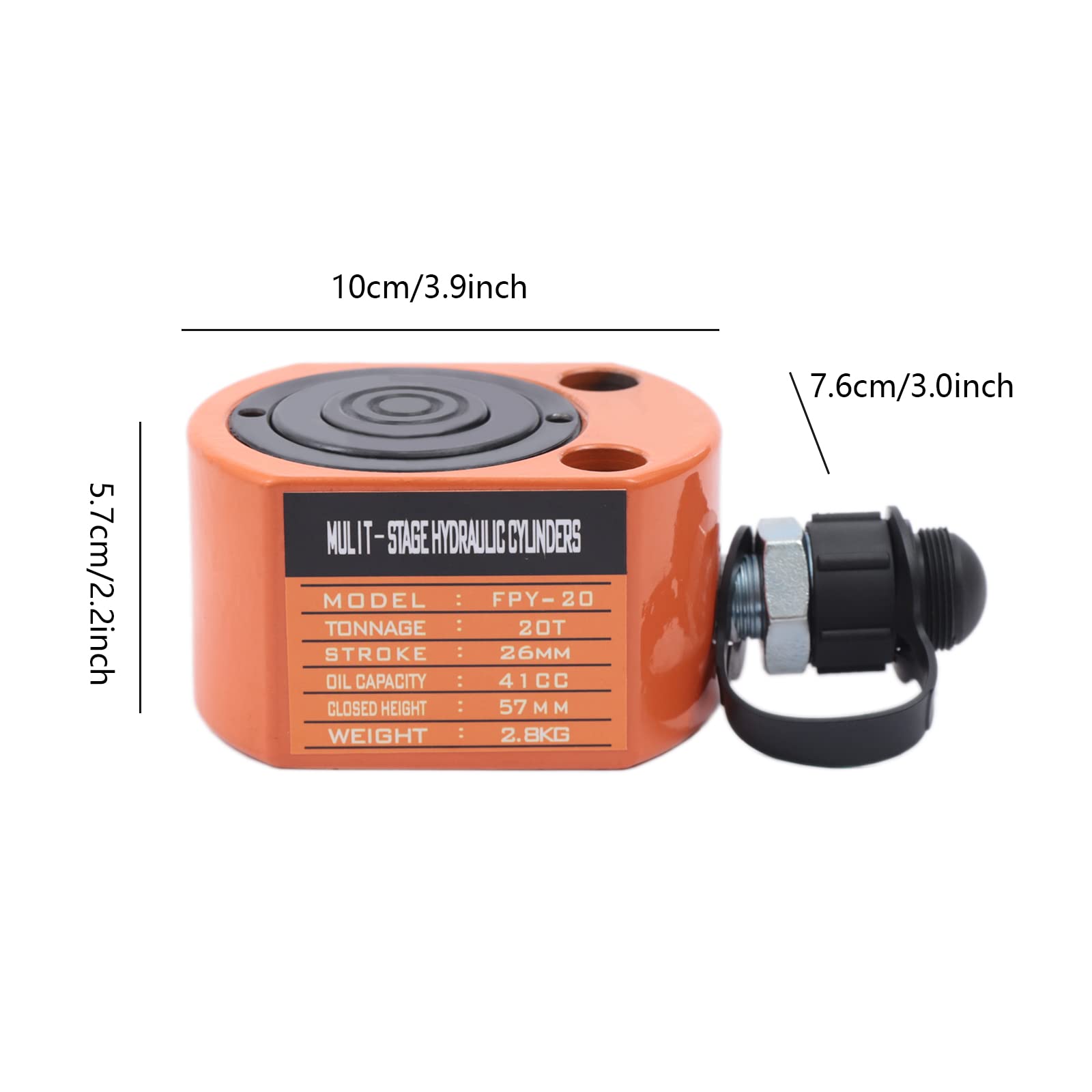

SpecificationModel: FRY-20Color: OrangeProduct Type: Hydraulic JackMain Material: 45 SteelRange of Application: Lifting EquipmentOil Capacity: 41ccSection Quantity: 2Connector Model: ZG-3/8Use Angle: 360 DegreesFirst Section Tonnage: 20T/44092lbsSecond Section Tonnage：7T/15432lbsTotal Tonnage: 20T/44092lbsFirst Section Stroke: 1cm/0.39inchSecond Section Stroke: 1.6cm/0.63inchFirst Section Piston Diameter: 5cm/1.97inchSecond Section Piston Diameter: 3.1cm/1.22inchTotal Stroke: 2.6cm/1.02inchClosed Height: 5.7cm/2.2inchProduct Size: 10*7.6*5.7cm/3.9*3*2.2inchGross Weight: 3kg/6.6lbsNet Weight: 2.8kg/6.17lbsPackage Included1* Hydraulic Cylinder JackNotes1.For proper operation, all cylinders need to be connected to a solid lifting surface.2.This jack needs to be used with a pump. The pump is not included in the package.3.This multi-section jack's pistons will not retract automatically after use, so you need to retract them manually.4. When not using the hydraulic pump, please tighten the sealing plug and seal the joint with a small bag and rubber band to avoid oil leakage.5.The bottom should be flat and tough when using hydraulic jacks. For the safety of use, it is recommended to use wood, which can expand the pressure-bearing surface. In addition, to avoid sliding, you can not use iron plates to lift things.6.Please lift the weight slightly before use to check for any abnormality. After checking, please raise the object steadily.

✅【20T Large Lifting Hydraulic Jack】 This is a hydraulic cylinder jack with a large lifting capacity of 20 tons/44092 pounds and the stroke is sufficient (0.39" First Section Stroke), so it can lift a lot of heavy objects to meet your most lifting needs well. The powerful lifting force enables it to lift a variety of very heavy items quickly and firmly.

✅【Premium Hydraulic Ram Cylinder】 The 20t hydraulic cylinder is made of heavy-duty metal construction. The main material of this jack is hard and strong 45 steel. It can withstand great weight without deformation or twisting. Our hydraulic cylinder jack is durable and designed for long-lasting use.

✅【Thoughtful Multi-Section Design】 In addition to the jack's height, the 2 pistons also increase the stroke so that the jack can lift higher. The jack can be placed at any angle on a flat surface to meet your different lifting needs.This hydraulic cylinder jack also has a connector to easily connect it to the pump, and it is designed with a cover.

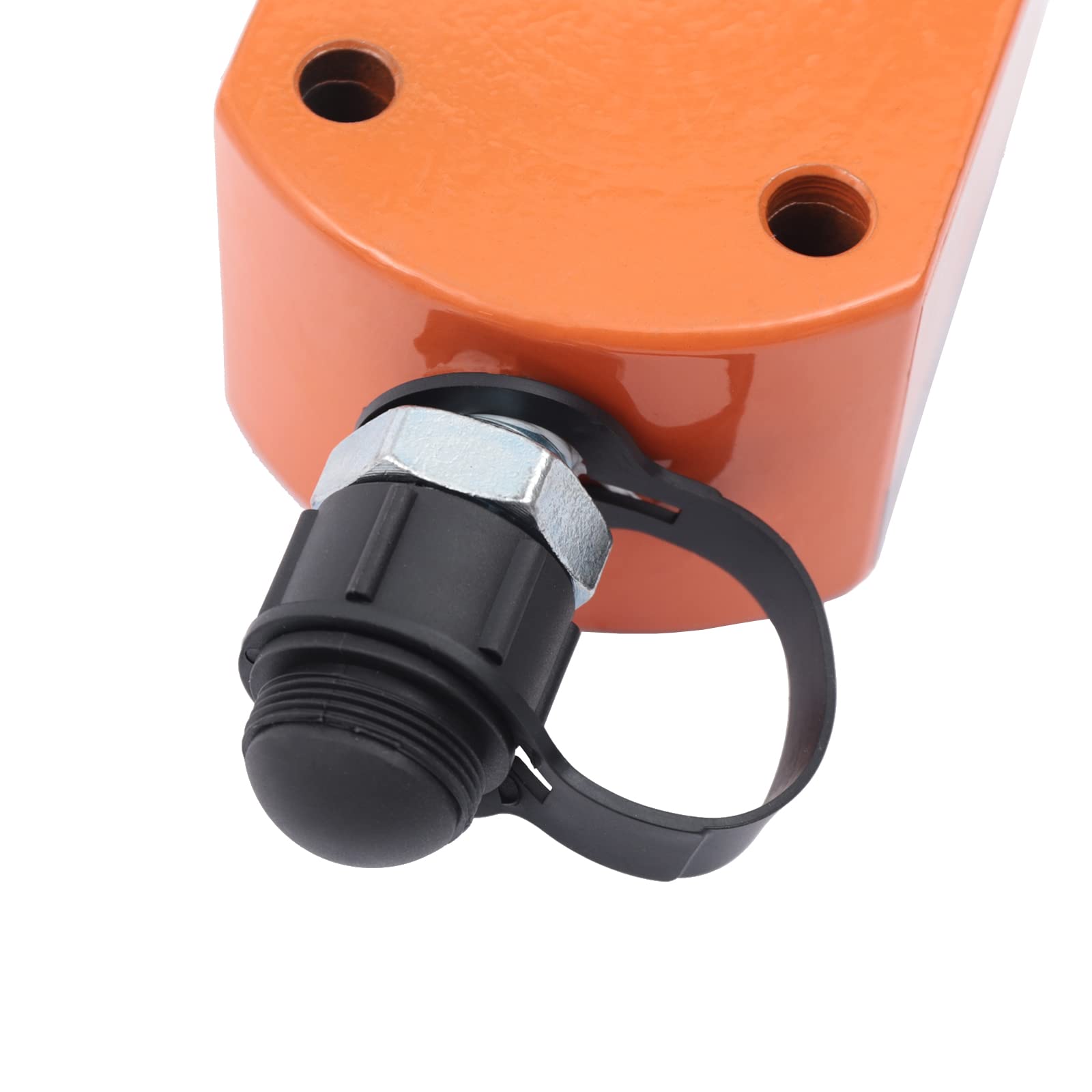

✅【Convenient & Safe to Operate】 This jack has a ZG-3/8 connector to quickly and easily connect it to the pump. Moreover, the connector is designed with a cover, which can extend the life of the jack. The stop ring can protect the jack at full lift. The spindle prevents breakage under load.

✅【2 Retractable Stroke Pistons】 This hydraulic jack has 2 retractable stroke pistons. When they contract, the hydraulic jack will be very thin and compact, which is easy to carry and store. The pistons are blackened to prevent them from rusting, also prolongs their service life.
